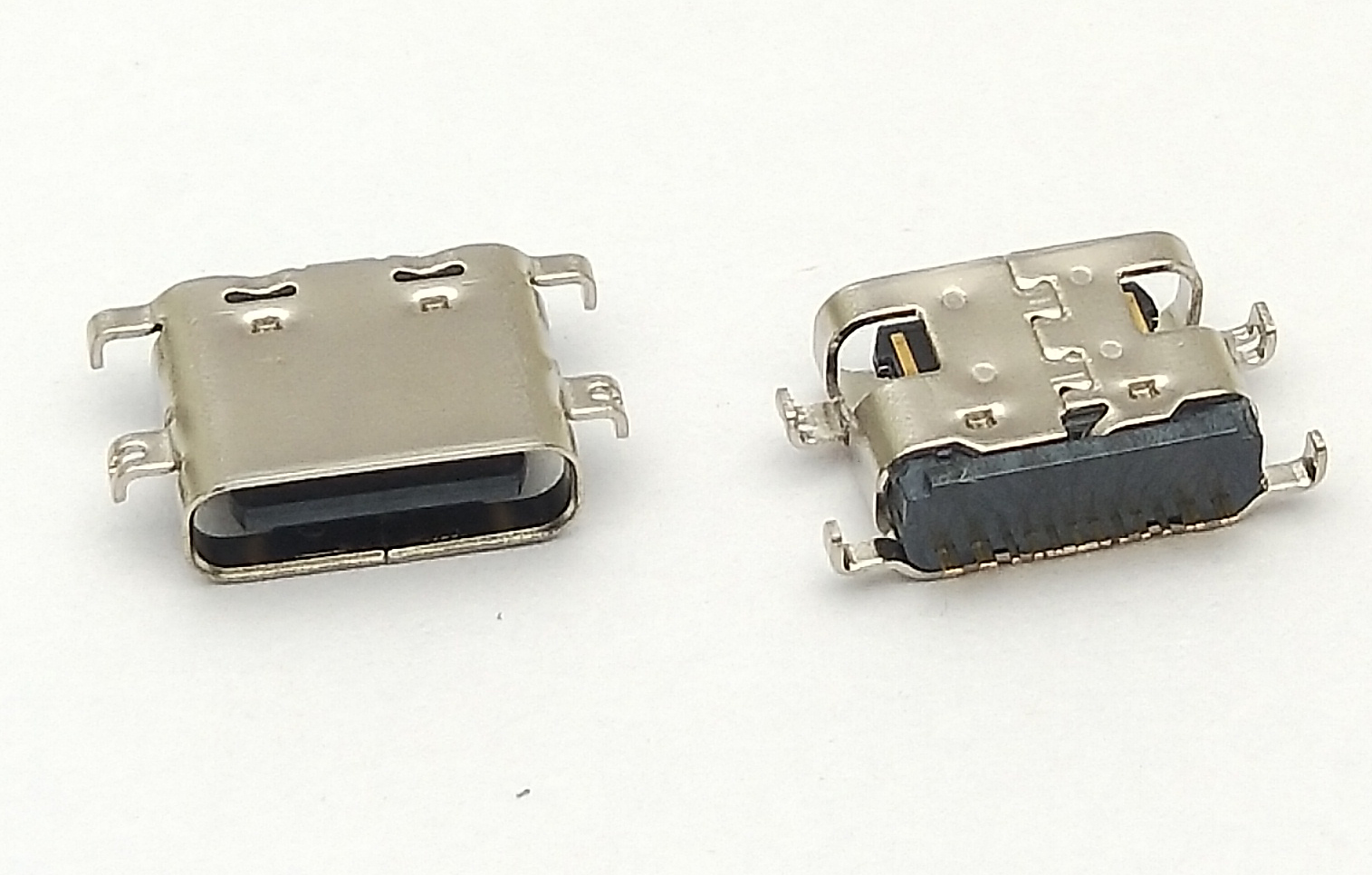

名稱(chēng)：USB TYPE C 16PIN L-6.50mmSMT 沉板2.10

NOTE:

1. Electrical Characteristics:

    1-1: Current Rating: 5A For Pin(A4,A9,B4,B9)

                 1.25A For Pin(B5)

                 0.25A For Others Pin

    1-2: VOLTAGE RATING:5.0V

    1-3: Insulation Resistance: 100MΩ Min.

    1-4: Contact Resistance:

         VBUS & GND PINS AND OTHER PINS: 40mΩ/PIN MAX.

         SHIELD:50mΩ/MAX.

         SHIELD:LLCR MAX. CHANGE OF ALL PINS: 10mΩ.

    1-5: Dielectric Withstanding Voltage: 100V/AC 1Minute

2. Mechanical Characteristics:

       Insertion Force: 5~20N

       Extraction Force: Initial: 8~20N

       After durability: 6~20N

       Durability :10000 Cycles

3. Operating Temperature: -25°C TO +85°C
